3115F-R

NB-IOT module IOT Module WiFi IOT Module Uart WiFi Module

Product classification:

LPWAN LoRa/NB-IoT Module

Key words:

3115F-R

nb-iot module

iot module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features


Ultra-compact, high-performance, low-power multi-band, 3GPP Rel. 14 corresponds to B5/B8/B20/B28 frequency band;

Support nb-iot radio communication protocol (3GPP Rel. 14);

The design is compatible with China mobile cellular Internet of things CBS1618 module technical specifications, convenient for customers to quickly and flexibly product design and upgrade;

Has been connected to China Mobile and China Telecom networks, providing AT commands;

Ultra low power consumption, ultra high sensitivity

Applications

Wireless meter reading, smart city, security, asset tracking, smart appliances, agriculture and environmental monitoring, and other industries

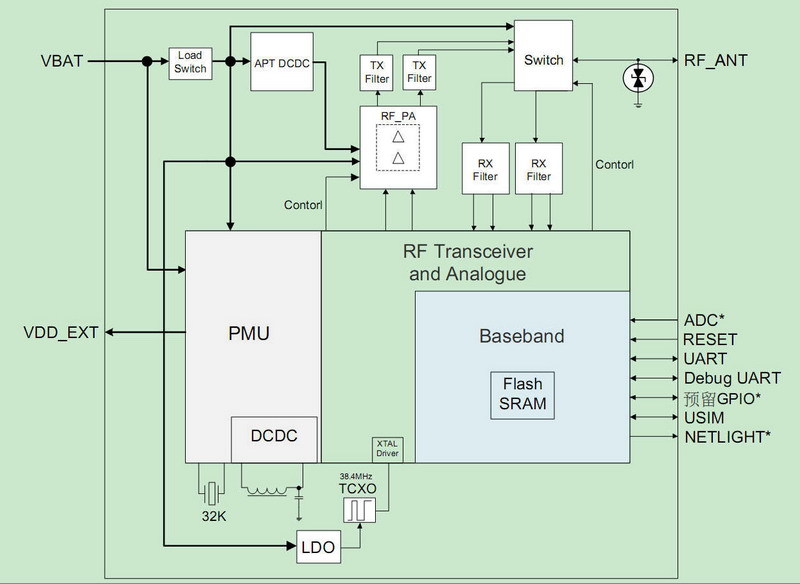

Block Diagram

Parameters

Model No 3115F-R Main Chipset Hi2115
Interface Uart WiFi Standard IPv4/IPv6/UDP/CoAP/LwM2M/Non-IP/DTLS/TCP/MQTT
Data Rate

Multi-tone subcarrier 15KHz:

25.2kbps(down),54kbps(up)

Certification RoHS,REACH
RF Antenna External Antenna OS Supported
Operating Frequency 3GPP Rel.14:B5/B8/B20/B28  Operating Voltage 3.3V
Dimension L16.0 * W18.0 * T2.0 mm RF Chain 1T1R
Operating Temperature -40°C to 85°C Storage Temperature -40°C to 150°C

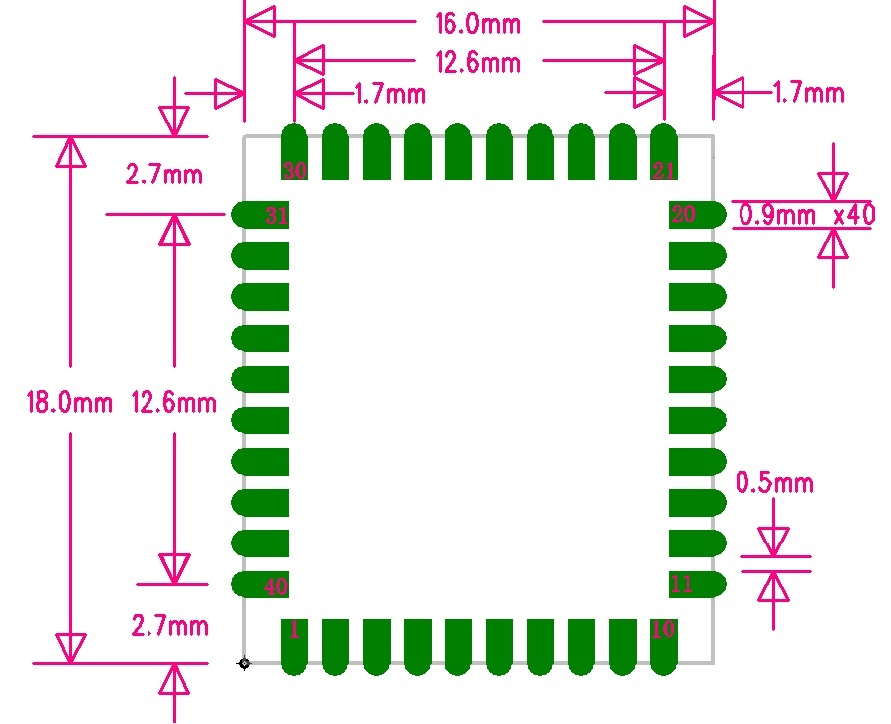

Dimension




Key Words: IOT Module WiFi IOT Module Uart WiFi Module

Download

Please download the specification from

Download Center
