5110N-U

WiFi Dual-band 1X1 802.11 a/b/g/n/ac Module RF Module Wireless HDMI Module WiFi Video Module

Product classification:

RF 2.4G/5.8G Wi-Fi/BT Module

Key words:

5ghz wifi module

wireless hdmi module

wifi video transmitter module

rf module

5110N-U

wlan module

electronic components

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.


Single-stream spatial up to 433Mbps data rate.


Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz


Supports USB interface for WLAN.

Applications



OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

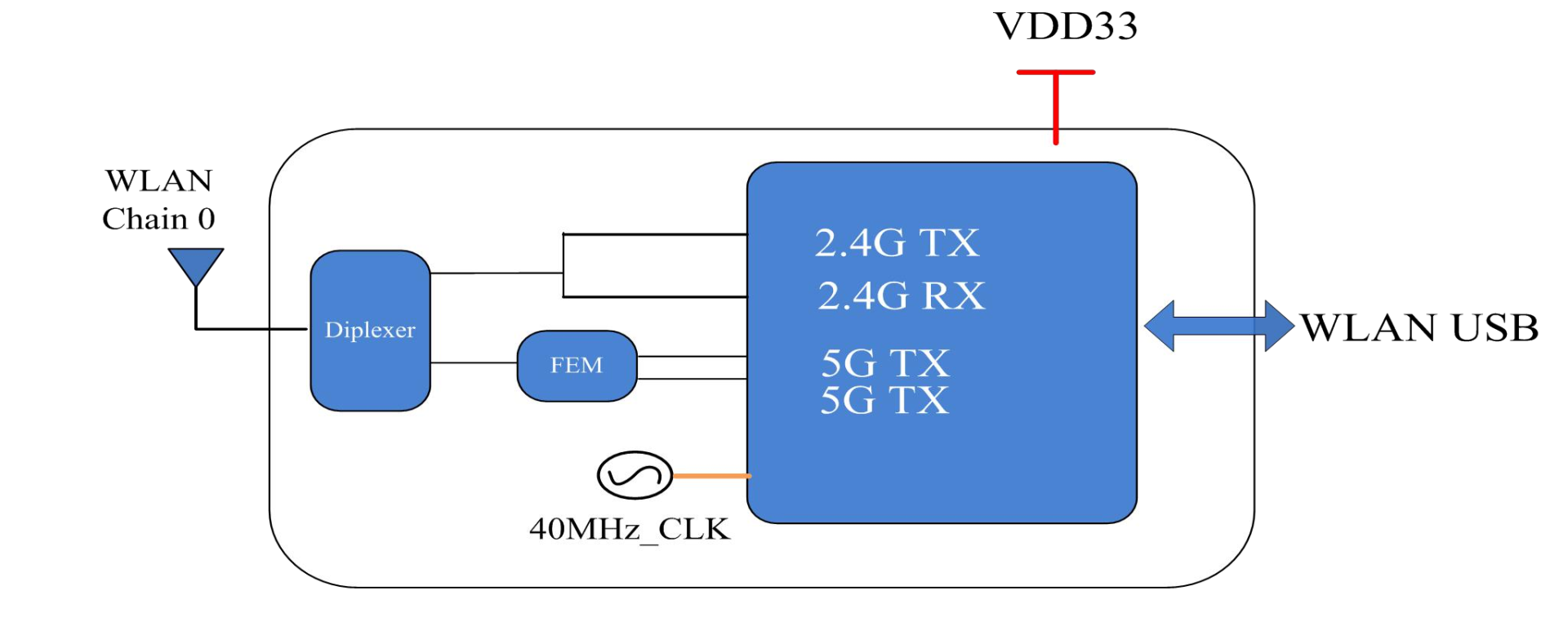

Block Diagram

Parameters

Model No 5110N-U Main Chipset MT7610UN
Interface USB WiFi Standard IEEE802.11 a/b/g/n/ac
Data Rate 433Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android/Linux/Windows
Operating Frequency
2.4G: 2.400GHz~2.497GHz
5.8G: 4.900GHz~5.845GHz
Operating Voltage 3.3V
Demension L15.0 * W30.0 * T2.8mm RF Chain 1T1R
Operating Temperature -10°C to 70°C Storage Temperature -40°C to 125°C

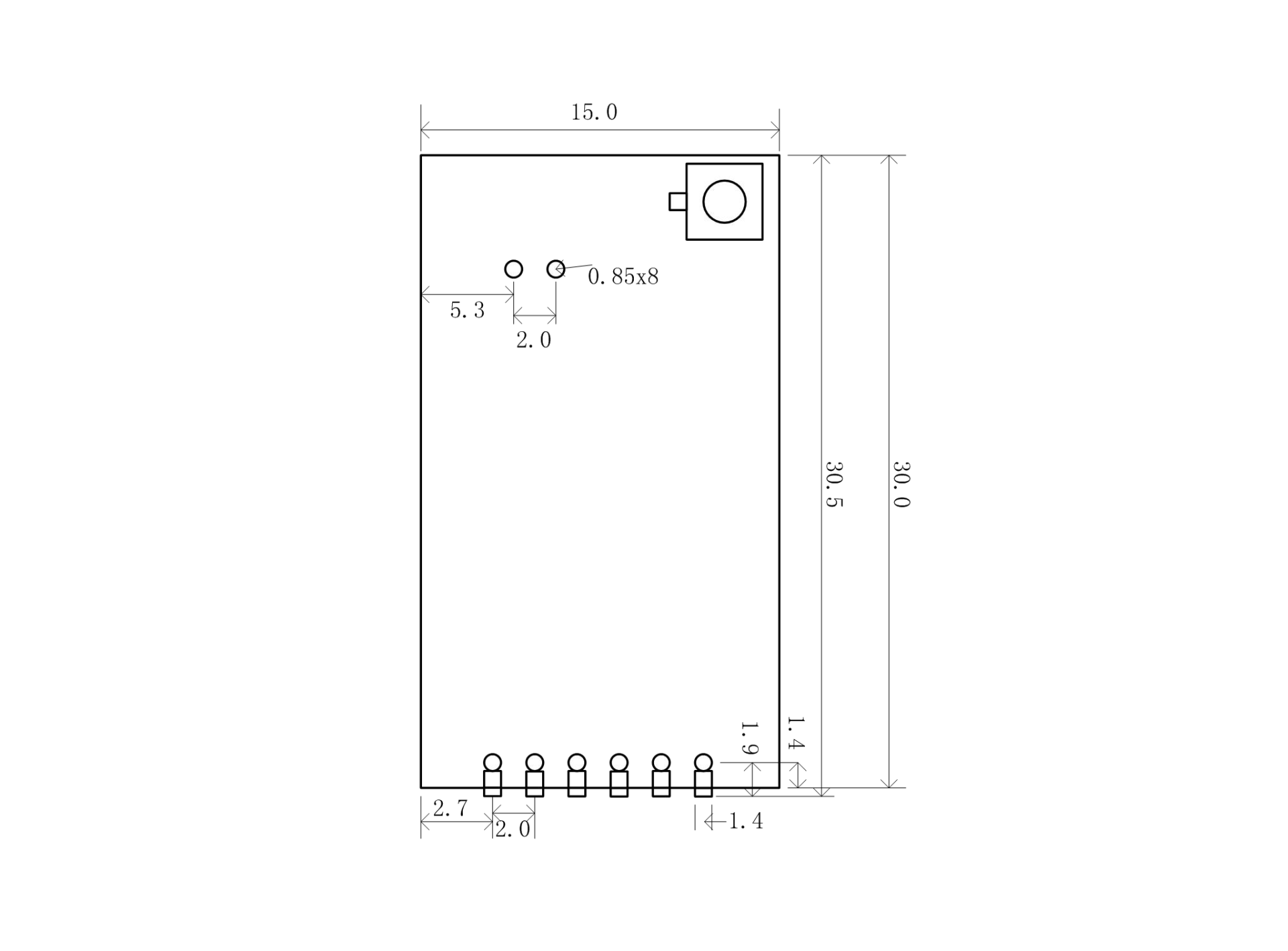

Demensions




Kye Words: RF Module Wireless HDMI Module WiFi Video Module Wlan Module
