6110R-IF-02

WiFi Single-band 1x1 11n+NFC IOT Module IOT WiFi Module IOT Solution IOT Gateway Module

Product classification:

IoT Wi-Fi/BLE Module

Key words:

6110R-IF-02

iot solution

iot gateway

pcb wifi module

iot wifi module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN

Complete 802.11n solution for 2.4G band

150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

Standards Supported

802.11b/g/n compatible WLAN

802.11e QoS Enhancement(WMM)

802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services

Wi-Fi Direct support

Light Weight TCP/IP protocol

WLAN PHY Features

802.11n OFDM

One Transmit and one Receive path(1T1R)

20MHz and 40MHz bandwidth transmission

Short Guard Interval(400ns)

Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n

Host Interface

2 high speed UART

1 I2C

 GPIO

Applications


Smart Home/Smart City/Smart Transportation System/Smart Watch/Smart Lighting/Smart Wearable/Shared Devices

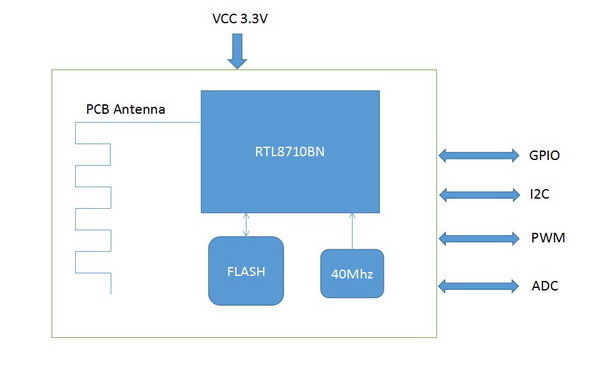

Block Diagram

Parameters

Model No 6110R-IF-02 Main Chipset RTL8710AF
Interface Uart/GPIO WiFi Standard IEEE802.11 b/g/n
Data Rate 150Mbps Certification RoHS,REACH
RF Antenna PCB Antenna OS Supported With MCU
Operating Frequency 2.400~2.4835GHz Operating Voltage  3.3V
Dimension L22.5 * W13.0 * T2.1mm RF Chain 1T1R
Operating Temperature -20°C to 85°C Storage Temperature -40°C to 125 °C

Demensions
