6110R-IN
Features
CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN
Complete 802.11n solution for 2.4G band
150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
802.11b/g/n compatible WLAN
802.11e QoS Enhancement(WMM)
802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services
WiFi Direct support
Light Weight TCP/IP protocol
802.11n OFDM
One Transmit and one Receive path(1T1R)
20MHz and 40MHz bandwidth transmission
Short Guard Interval(400ns)
Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n
Host Interface：
1 x UART
1 x I2C
6 x PWM
1 x ADC
GPIO
Applications

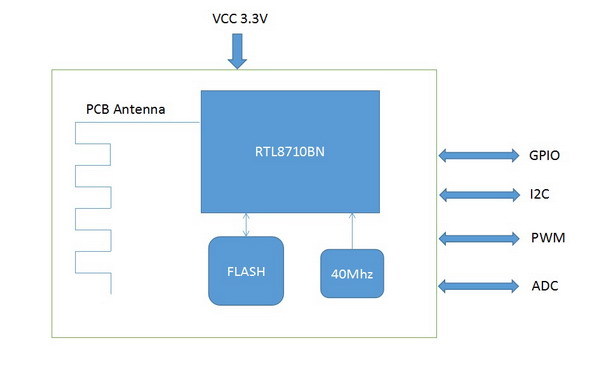

Block Diagram
Parameters
| Model No | 6110R-IN | Main Chipset | RTL8710BN |
| Interface | UART/GPIO/PWM | WiFi Standard | IEEE802.11 b/g/n |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | PCB Antenna | OS Supported | With MCU |
| Operating Frequency | 2.400～2.4835GHz | Operating Voltage | 3.3V |
| Demension | L22.5 * W13.0 * T2.9mm | RF Chain | 1T1R |
| Operating Temperature | -20°C to 85°C | Storage Temperature | -40°C to 125 °C |

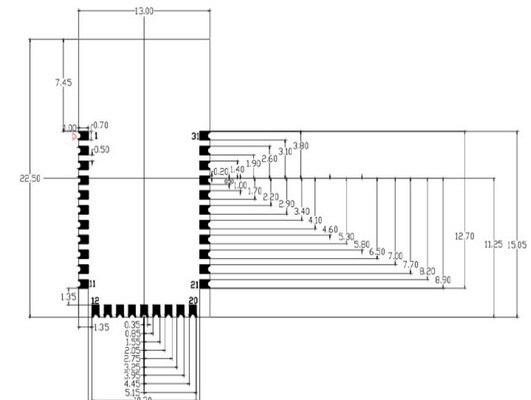

Demensions
