6131E-U
WiFi Dual-band 1X1 802.11 a/b/g/n/ac Module RF Module Wireless HDMI Module WiFi Video Module
Product classification：
RF 2.4G/5.8G Wi-Fi/BT Module
Key words：
5ghz wifi module
wireless hdmi module
wifi video transmitter module
rf module
6131E-U
Features
Highly integrated wireless local area network (WLAN) system-on-chip (SOC) for 2.4G(802.11b/g/n)/5G (802.11a/n) WLAN applications
Supports 20/40MHz at 2.4GHz and 5GHz
OFDM with BPSK, QPSK, 16QAM, 64QAM modulation, Coding Rate: 1/2, 2/3, 3/4, and 5/6
Maximum data rate 54Mbps in 802.11a and 802.11g, and 150Mbps in 802.11n
Small SMT package
802.11i (WPA, WPA2，WPA3)
Applications
OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

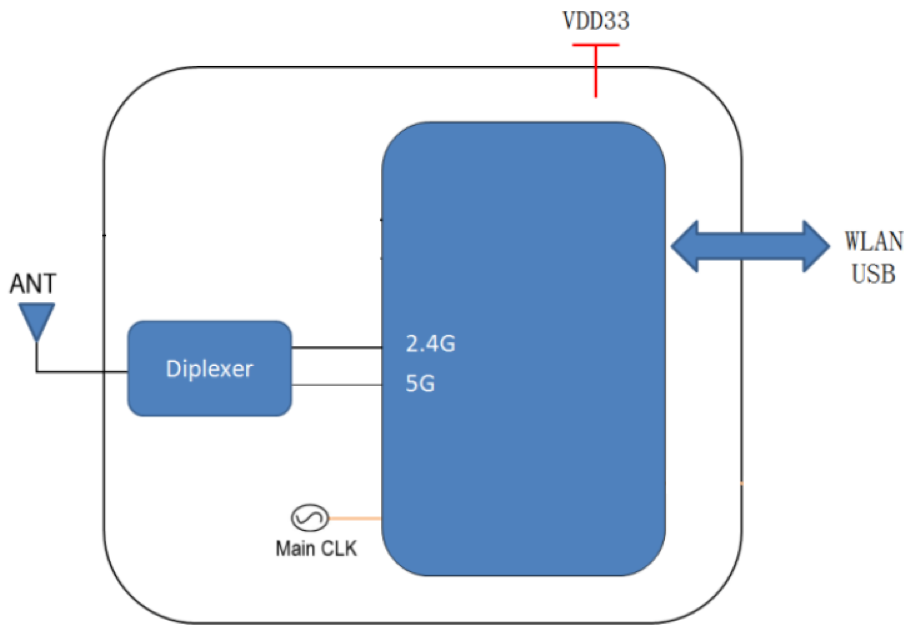

Block Diagram
Parameters
| Model No | 6131E-U | Main Chipset | RTL8731BU |
| Interface | USB | WiFi Standard | IEEE802.11 a/b/g/n |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Android/Linux/Windows |
| Operating Frequency |
2.4G: 2.4000GHz～2.4835GHz
5.8G：5.150 GHz ~ 5.850 GHz
|
Operating Voltage | 3.3V |
| Demension | L12.2 * W13.0 * T2.35mm | RF Chain | 1T1R |
| Operating Temperature | -40°C to 85°C | Storage Temperature | -40°C to 85 °C |
