6161B-R

Realtek Bluetooth Moule Bluetooth 5.0 Module BLE Bluetooth Module Nordic Bluetooth Module

Product classification:

IoT Wi-Fi/BLE Module

Key words:

bluetooth5.0module

nordic bluetooth module

ble bluetooth module

6161B-R

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Bluetooth 5 specification compliant

Supports Bluetooth classic (BDR/EDR)

Supports Bluetooth Low Energy (BLE)

Compatible with Bluetooth v2.1 Systems

Supports all packet types in basic rate and enhanced data rate

Supports Secure Simple Pairing

Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different

profiles

Supports multiple Low Energy states

Complies with HS-UART with configurable baud rate for Bluetooth

Supports PCM interface

Applications

Smart Light、Instrument、Logistics Tracking、Health Care、Smart Home、Motion Measurement、Automotive Electronics、Toy and other consumer electronics

Block Diagram

Parameters

Model No 6161B-R Main Chipset RTL8761BTV
Interface Uart Protocol BLE5.0
Operating Frequency
2.402~2.480GHz
RF Antenna PCB Antenna
Demension
L13.0 * W15.0 * T2.25mm
Operating Voltage 3.3V
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 85°C

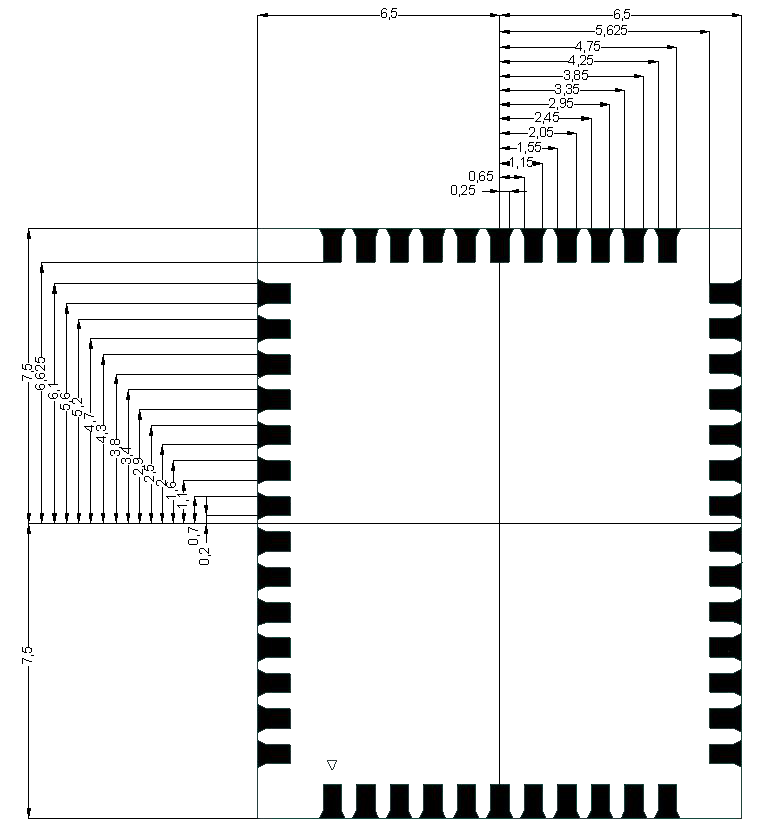

Demensions




Key Words: Bluetooth 5.0 Module BLE Bluetooth Module Nordic Bluetooth Module

Download

Please download the specification from

Download Center
