6189S-SF
WiFi Single-band 1X1 11n Module RF Transceiver Module WiFi Camera Module SDIO WiFi Module
Product classification：
RF 2.4G Wi-Fi/BT Module
Key words：
wifi module
low cost wifi module
rf transceiver module
wireless camera module
pcb wifi module
sdio wifi module
6189S-SF
Features
Operate at ISM frequency bands (2.4GHz)
CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n compatible WLAN
Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
Applications
OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

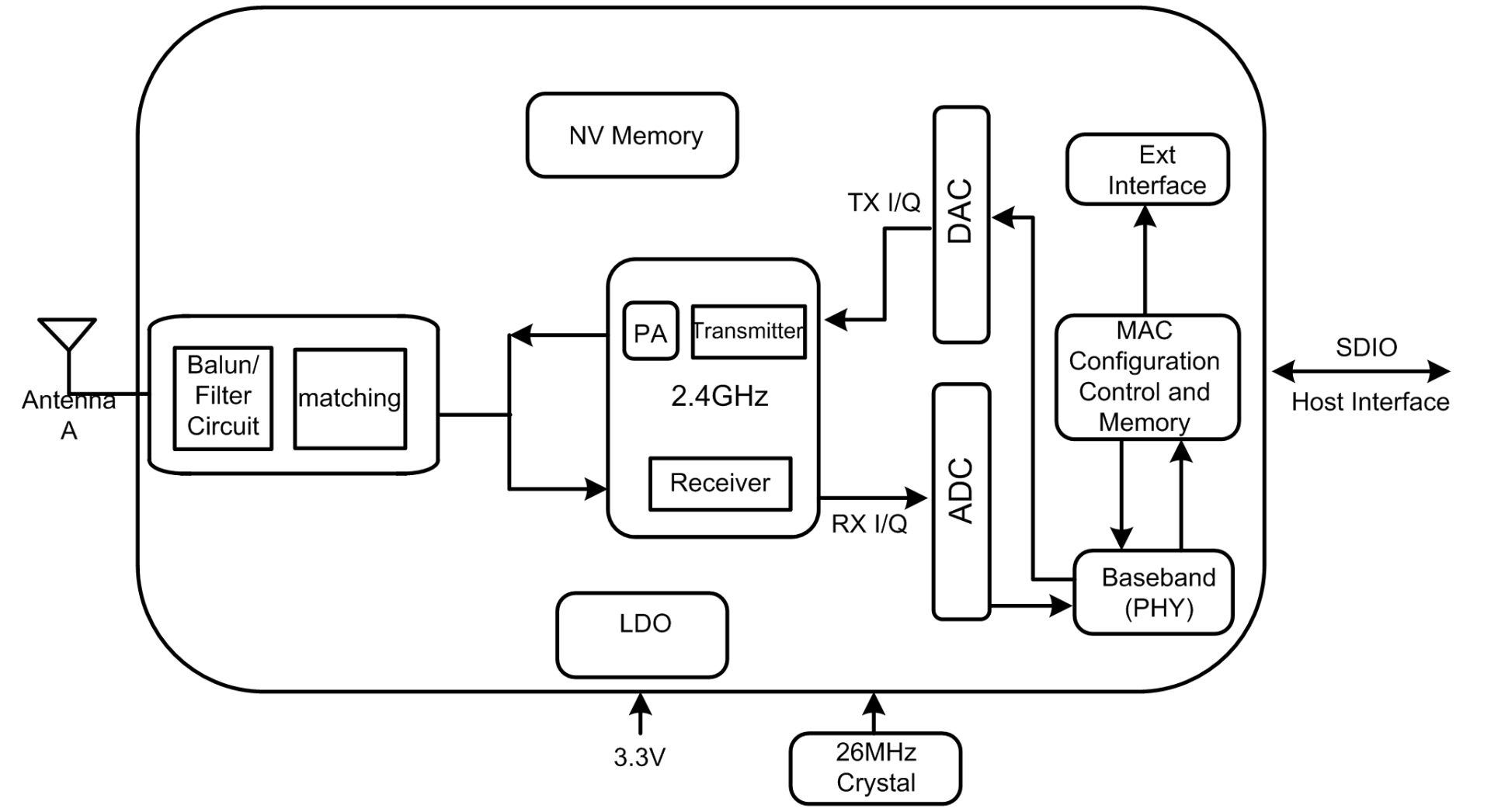

Block Diagram
Parameters
| Model No | 6189S-SF | Main Chipset | RTL8189FTV |
| Interface | SDIO | WiFi Standard | IEEE802.11 b/g/n |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | PCB Antenna | OS Supported | Linux/Android/Windows |
| Operating Frequency | 2.4G:2.400～2.497GHz | Operating Voltage | 3.3V |
| Dimension | L18.2 * W14.8 * T2.2mm | RF Chain | 1T1R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 85 °C |

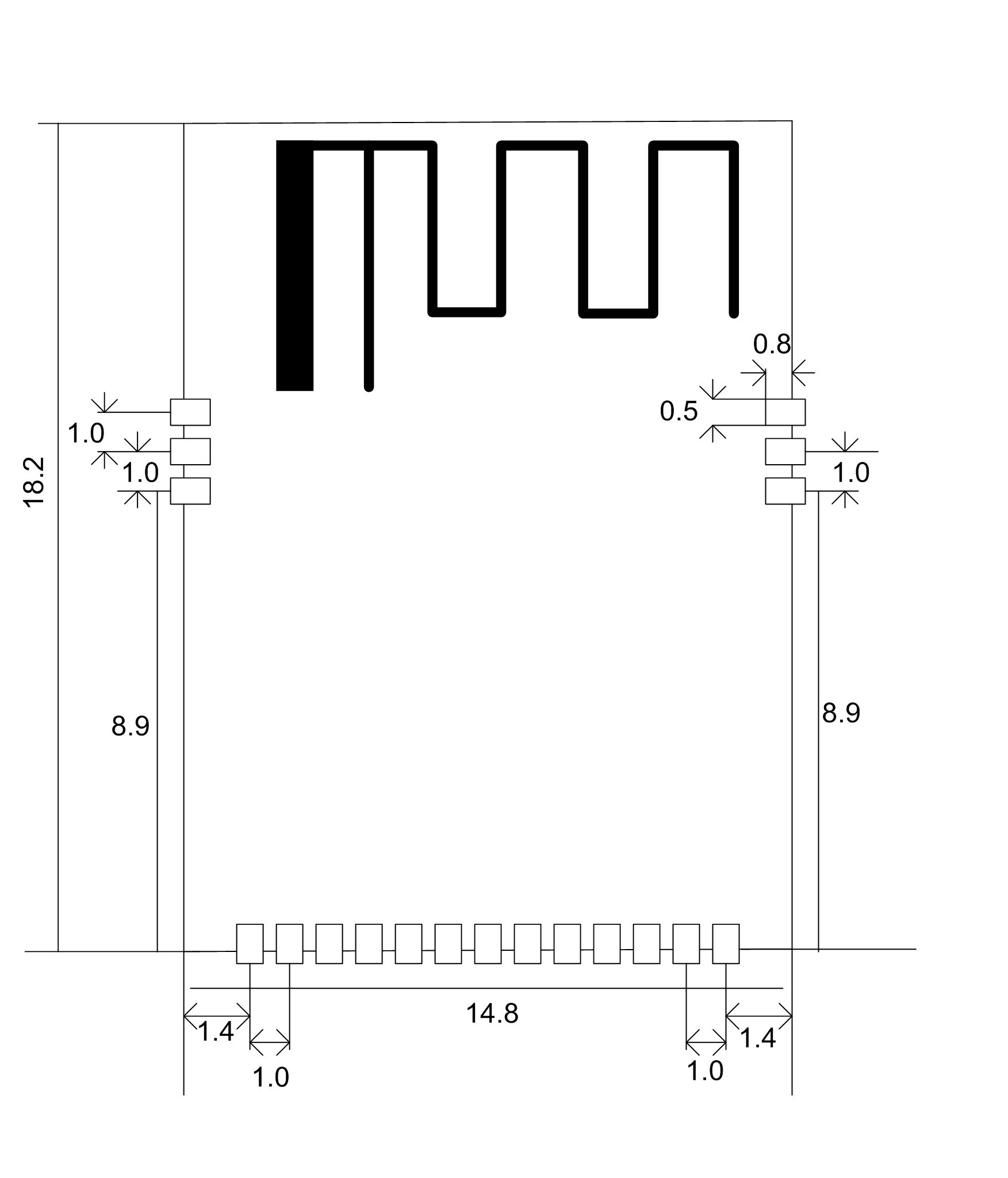

Dimension
Download
Please download the specification from
