6192E-UC

WiFi Single-band 2X2 11n Module Wireless Audio Module Wireless Camera Module USB WiFi Module

Product classification:

RF 2.4G Wi-Fi/BT Module

Key words:

wireless microphone module

wireless audio module

wireless camera module

usb wifi module

ip camera module wifi

6192E-UC

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Operate at ISM frequency bands (2.4GHz)

USB Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

WiFi 2 transmitter and 2 receiver allow data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHY rates

Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

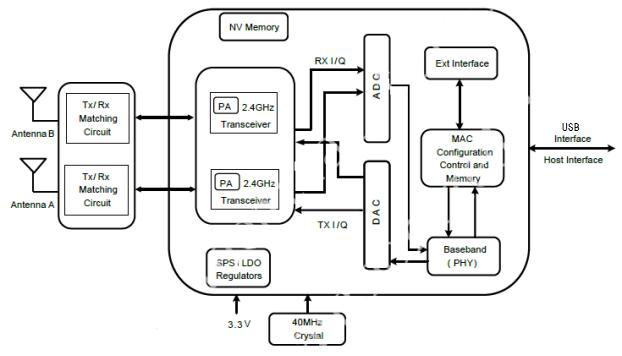

Block Diagram

Parameters

Model No 6192E-UC Main Chipset RTL8192FC
Interface USB WiFi Standard IEEE802.11 b/g/n
Data Rate 300Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android /Linux/Windows
Operating Frequency
2.4G:2.400~2.4835GHz
Operating Voltage 3.3V
Demension L12.2 * W12.9 * T1.7mm RF Chain 2T2R
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 85 °C

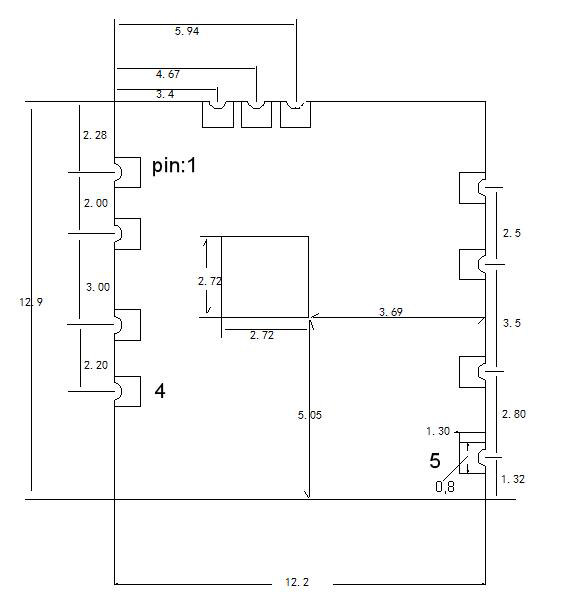

Demensions




Key Words: Wireless Audio Module Wireless Camera Module USB WiFi Module

Download

Please download the specification from

Download Center
