6223E-UUD-3

WiFi Single-band 1X1 11n + Bluetooth 4.2 Combo Module WiFi STB Module RTL8723 WiFi Wireless Module Bluetooth WiFi Module

Product classification:

RF 2.4G Wi-Fi/BT Module

Key words:

6223E-UUD

rtl8723 wifi wireless module

bluetooth wifi module

stb module

projector module

2.4ghz module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Operate at ISM frequency bands (2.4GHz)

USB for Wi-Fi and Bluetooth

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i

Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode

Fully qualified for Bluetooth 3.0

Fully qualified for Bluetooth 4.2 Dual mode

Full–speed Bluetooth operation with Piconet and Scatternet support

Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi.

Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

Add shield cover for better performance

Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

Block Diagram

Parameters

Model No 6223E-UUD-3 Main Chipset RTL8723DU
Interface USB WiFi Standard IEEE802.11 b/g/n+BLE4.2
Data Rate 150Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android /Linux/Windows
Operating Frequency 2.4G:2.400~2.4835GHz Operating Voltage 3V
Demension L12.2 * W13 * T1.9 mm RF Chain 1T1R
Operating Temperature 0°C to 70°C Storage Temperature -55°C to 125 °C

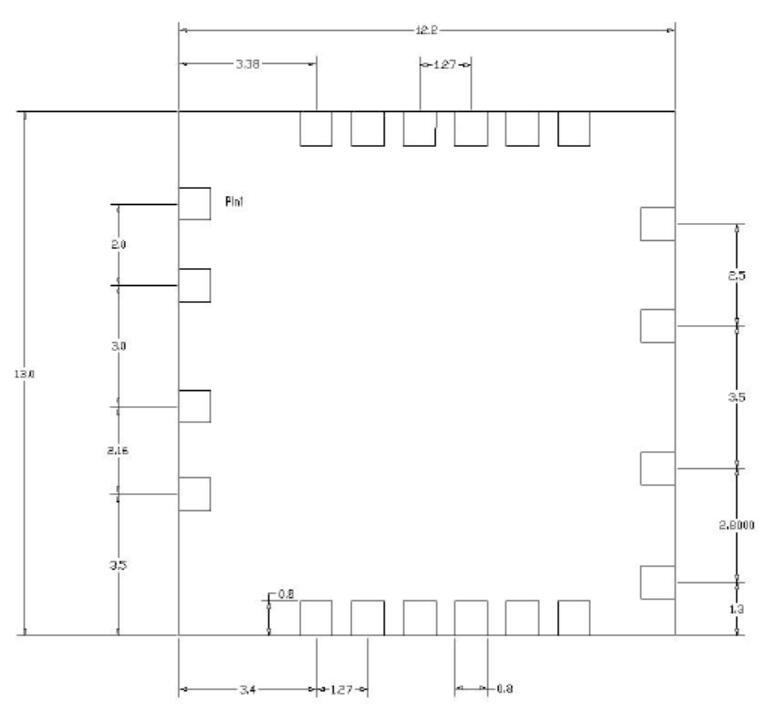

Demensions
