6252M-PUB
Wi-Fi Dual-band 2X2 11ax + Bluetooth 5.2 Module 5GHz WiFi Module WiFi Bluetooth Module 802.11ax
Product classification：
RF WIFI6/WIFI6E Module
Key words：
5ghz wifi module
wifi bluetooth module
802.11ax
wifi6module
m.2 pcie wifi module
6252M-PUB
Features
Support 802.11ac 2x2,Wave-2 compliant with RX MU-MIMO
IEEE 802.11a/b/g/n/ac/ax compatible WLAN
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports 802.11ac 2x2, Wave-2 compliant with RX MU-MIMO
Complete 802.11n MIMO solution for 2.4GHz and 5GHz band
Supports low power PCIe(Base Specification Revision 1.1) interface for WLAN and USB(2.0 FS-mode)
Supports Bluetooth 5.0 system
Compatible with Bluetooth v2.1+EDR
Dual Mode support: Simultaneous LE and BR/EDR
Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles
Supports Bluetooth for class1, class2 and class3 power level transmissions without requiring an external PA
Integrated 32K oscillator for power management
Applications
OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

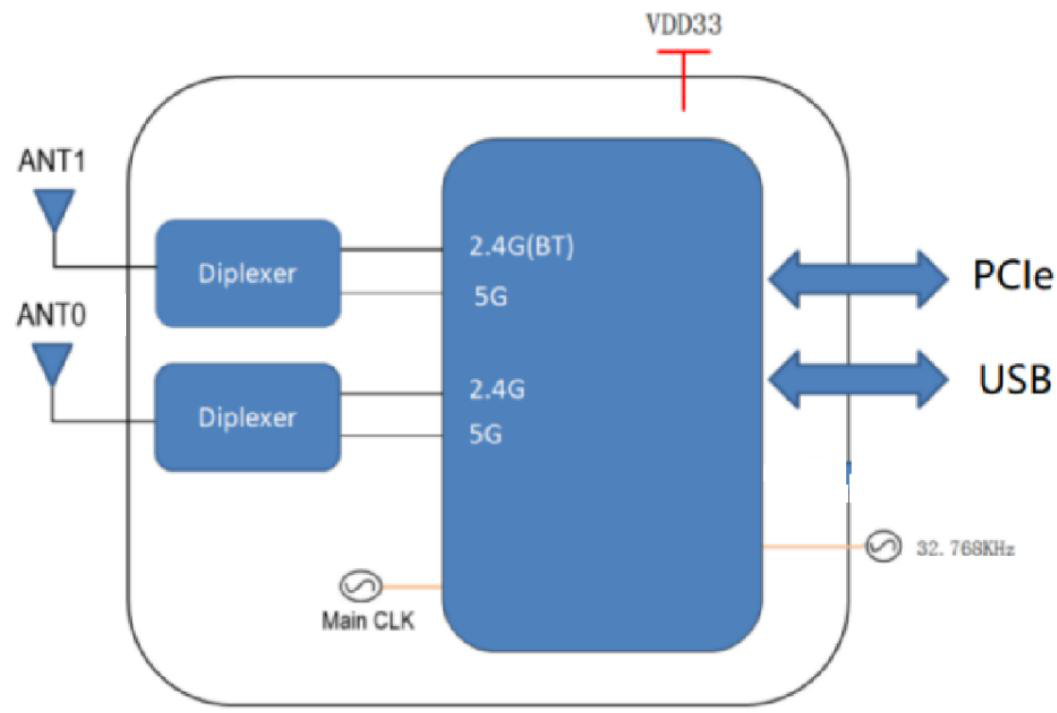

Block Diagram
Parameters
| Model No | 6252M-PUB | Main Chipset | RTL8852BE-CG |
| Interface | PCIE/USB | WiFi Standard | IEEE 802.11 a/b/g/n/ax+BLE5.0 |
| Data Rate | 1200Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
| Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band) 5.8G:4.900GHz～5.845GHz(5.0G ISM Band) |
Operating Voltage | 3.3V |
| Demension | L22.0 * W30.0 * T2.2 mm | RF Chain | 2T2R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 85°C |

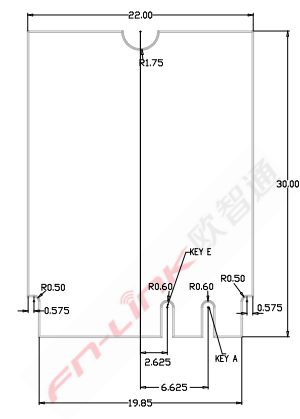

Demensions
Download
Please download the specification from
