F11AFIM13-B1

WiFi Single-band 1x1 11n+NFC Module IOT Module IOT Home Automation IOT Switch Module

Product classification:

IoT Wi-Fi/BLE Module

Key words:

F11AFIM13-B1

iot

iot module

iot home automation

iot switch

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN

Complete 802.11n solution for 2.4G band

150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

802.11b/g/n compatible WLAN

802.11e QoS Enhancement(WMM)

802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services

WiFi Direct support

Light Weight TCP/IP protocol

802.11n OFDM

One Transmit and one Receive path(1T1R)

20MHz and 40MHz bandwidth transmission

Short Guard Interval(400ns)

Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n

Host Interface

1 x UART

SDIO

GPIO

Applications


Smart Gateway/Smart Home/Smart City/Smart Transportation System/Smart Watch/Smart Lighting/Smart Wearable/Shared Devices

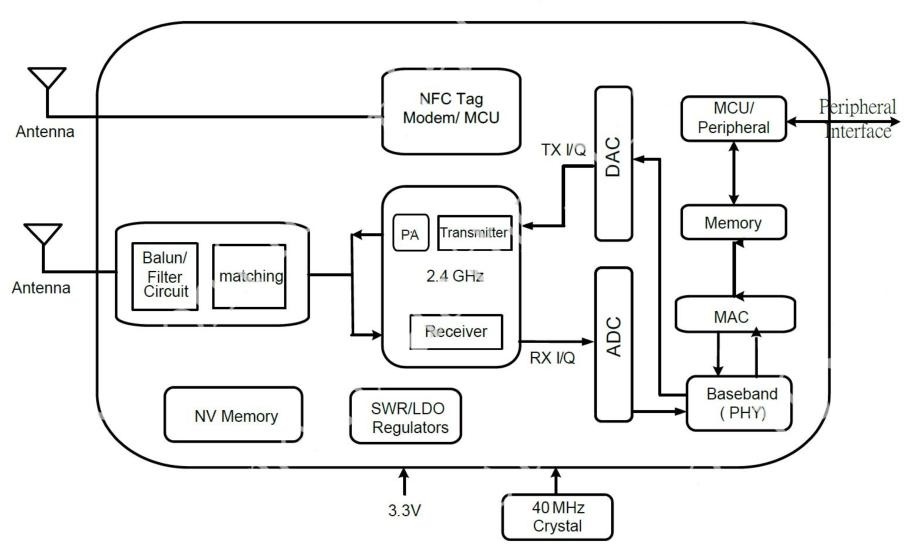

Block Diagram

Parameters

Model No F11AFIM13-B1 Main Chipset RTL8711AF
Interface Uart/GPIO/SDIO WiFi Standard IEEE802.11 b/g/n
Data Rate 150Mbps Certification RoHS,REACH
RF Antenna PCB Antenna OS Supported With MCU
Operating Frequency 2.400~2.4835GHz Operating Voltage 3.3V
Dimension L22.5 * W13.0 * T1.7mm RF Chain 1T1R
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 80 °C

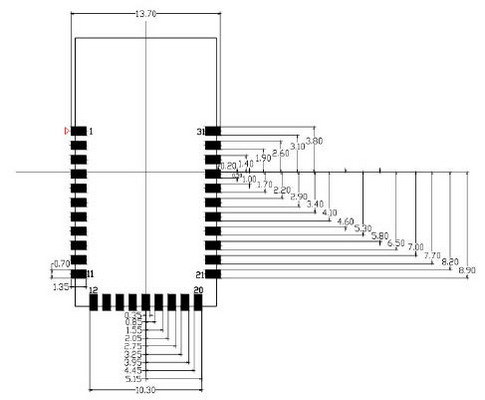

Demensions




Key Words: IOT Module IOT Home Automation IOT Switch Module
