F11AUUM13-W3

WiFi Dual-band 1X1 802.11 a/b/g/n/ac Module 5GHz WiFi Module Realtek USB WiFi Module WiFi Video Module

Product classification:

RF 2.4G/5.8G Wi-Fi/BT Module

Key words:

F11AUUM13-W3

5ghz wifi module

realtek usb wifi module

wifi video module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Compatible with IEEE 802.11a standard to provide wireless 54Mbps date rate.

Compatible with IEEE 802.11g standard to provide wireless 54Mbps date rate.

Compatible with IEEE 802.11b standard to provide wireless 11Mbps date rate.

Compatible with IEEE 802.11n standard to provide wireless 150Mbps date rate.

Compatible with IEEE 802.11ac standard to provide wireless 433.3Mbps date rate.

Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations

Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility.

Supports IEEE 802.11i(WPA and WPA2),WAPI,. enhanced security

Applications



OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

Block Diagram

Parameters

Model No F11AUUM13-W3 Main Chipset RTL8811AU
Interface USB WiFi Standard IEEE802.11 a/b/g/n/ac
Data Rate 433Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android/Linux/Windows
Operating Frequency
2.4G: 2.4000GHz~2.4835GHz
5.8G: 5.150GHz~5.825GHz
Operating Voltage 3.3V
Dimension L23.0 * W17.0 * T3.0mm RF Chain 1T1R
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 80 °C

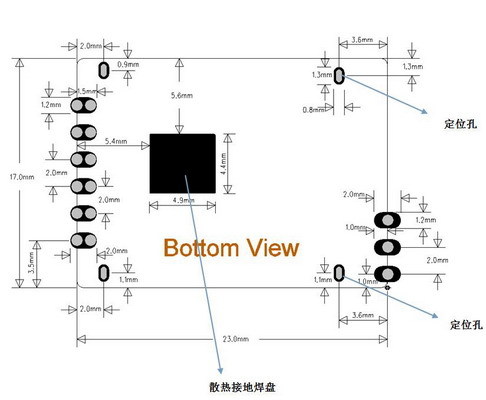

Demensions




Key Words: 5GHz WiFi Module Realtek USB WiFi Module WiFi Video Module

Download

Please download the specification from

Download Center
