F23BDSM33-W2

WiFi Single-band 1X1 11n + Bluetooth V2.1 Module WiFi Module RF Module SDIO WiFi Module

Product classification:

RF 2.4G Wi-Fi/BT Module

Key words:

F23BDSM33-W2

wifi module

sdio wifi module

rf module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

802.11b/g/n 1T1R WLAN and Bluetooth module

Complies with SDIO 1.1/2.0/3.0 for WLAN with clock rate up to 100MHz (DDR50)

802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services

Maximum data rate 54Mbps in 802.11g; and 150Mbps in 802.11n

Compatible with Bluetooth v2.1+EDR and v3.0+HS Systems

Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

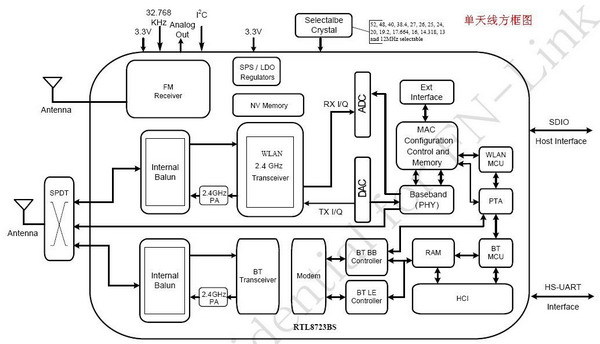

Block Diagram

Parameters

Model No F23BDSM33-W2 Main Chipset RTL8723BS
Interface SDIO WiFi Standard IEEE802.11 b/g/n+BLE4.0
Data Rate 150Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android /Linux/Windows
Oprating Frequency 2.4G:2.400~2.4835GHz Operating Voltage 3.3V
Dimension L16.0 * W12.0 * T1.7mm RF Chain 1T1R
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 80 °C

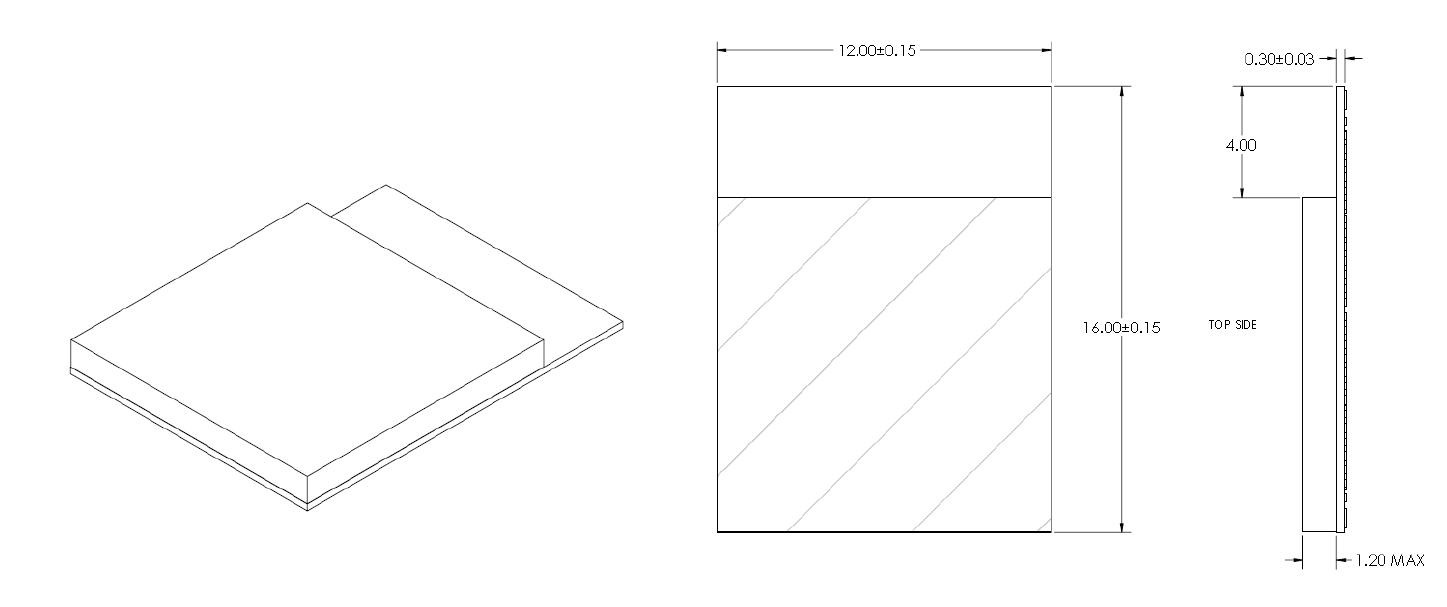

Dimension
