F23BUUD15-B1
WiFi Single-band 1X1 11n+Bluetooth Dongle WiFi Adapter WiFi Dongle WiFi Display Dongle
Product classification：
RF 2.4G Wi-Fi/BT Module
Key words：
F23BUUD15-B1
dongle
wifi dongle
wifi adapter
wifi bluetooth adapter
wifi display dongle
Features
Operate at ISM frequency bands (2.4GHz)
USB for Wi-Fi and UBluetooth
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode
Full–speed Bluetooth operation with Piconet and Scatternet support
Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi.
Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
Applications
USB External Products

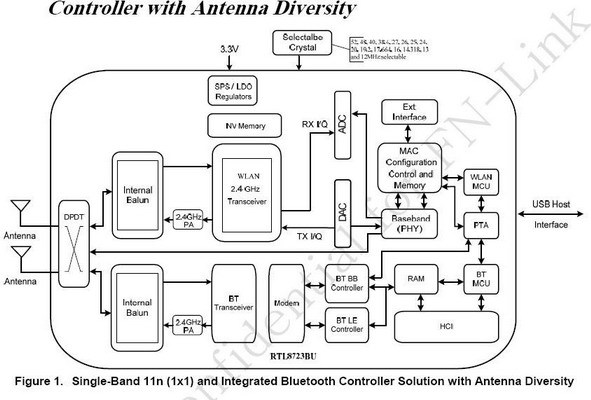

Block Diagram
Parameters
| Model No | F23BUUD15-B1 | Main Chipset | RTL8723BU |
| Interface | USB | WiFi Standard | IEEE802.11 b/g/n+BLE4.0 |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | Built-in Antenna | OS Supported | Android /Linux/Windows |
| Operating Frequency | 2.4G: 2.4000GHz～2.4835GHz | Operating Voltage | 5V |
| Demnension | L61.2 * W19.2 * T8.0mm | RF Chain | 1T1R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 80 °C |

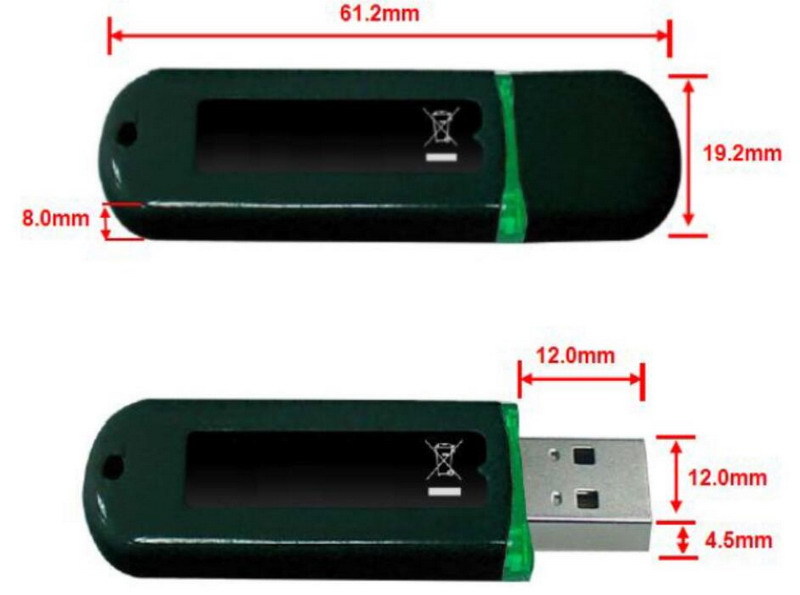

Demensions
Download
Please download the specification from
