F88EUUD15-B3
WiFi Single-band 1X1 11n Dongle USB WiFi Dongle Wireless Display Dongle WiFi Dongle For Set Top Box
Product classification：
RF 2.4G Wi-Fi/BT Module
Key words：
F88EUUD15-B3
anycast dongle
wifi dongle for set top box
usb dongle
wireless display dongle
usb wifi dongle wifi direct
Features
Operate at ISM frequency bands (2.4GHz)
USB Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
Applications
Block Diagram
Parameters
| Model No | F88EUUD15-B3 | Main Chipset | RTL8188EUS |
| Interface | USB | WiFi Standard | IEEE802.11 b/g/n |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | Built-in Antenna | OS Supported | Linux/Android |
| Operating Frequency | 2.4G:2.400～2.4835GHz | Operating Voltage | 5V |
| Demension | L18.3 * W16.5 * T1.80mm | RF Chain | 1T1R |
| Operating Temperature | -20°C to 45°C | Storage Temperature | -40°C to 70°C |

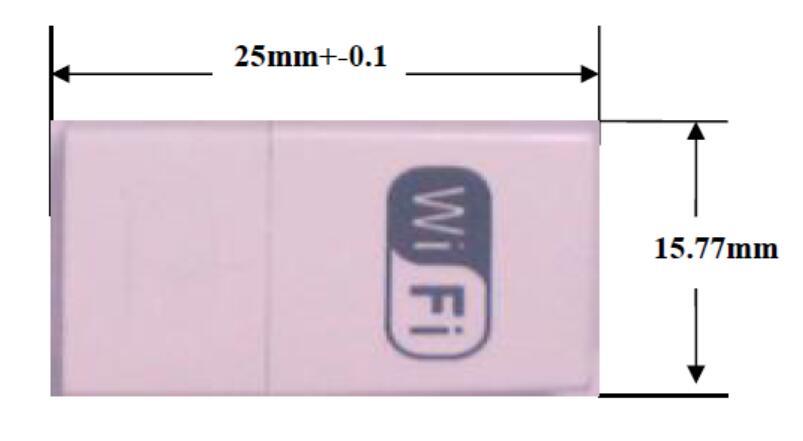

Demensions
Download
Please download the specification from
