F88EUUM23-VH

WiFi Single-band 1X1 11n Module Wireless Module Wireless LAN Module Wireless Video Transmitter Module

Product classification:

RF 2.4G Wi-Fi/BT Module

Key words:

F88EUUM23-VH

wireless module

wireless audio module

wireless lan module

wireless video transmission module

2.4ghz module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Operate at ISM frequency bands (2.4GHz)

USB Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

Block Diagram

Parameters

Model No F88EUUM23-VH Main Chipset RTL8188EUS-VH
Interface USB WiFi Standard IEEE802.11 b/g/n
Data Rate 150Mbps Certification RoHS,REACH
RF Antenna PCB Antenna OS Supported Linux/Android
Operating Frequency 2.4G:2.400~2.4835GHz Operating Voltage 3.3V
Demension L25.0 * W12.0 * T2.0mm RF Chain 1T1R
Operating Temperature 0°C to 55°C Storage Temperature -40°C to 80°C

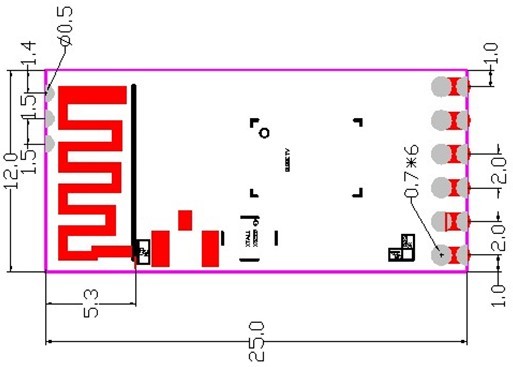

Demensions




Key Words: Wireless Module Wireless LAN Module Wireless Video Transmitter Module

Download

Please download the specification from

Download Center
