F89FTSM13-W3
WiFi Single-band 1X1 11n Module Wireless Module Low Cost WiFi Module RTL8188 WiFi Module
Product classification：
RF 2.4G Wi-Fi/BT Module
Key words：
F89FTSM13-W4
wireless module
long range wifi module
low cost wifi module
wirless transceiver module
rtl8188 wifi module
Features
Operate at ISM frequency bands (2.4GHz)
SDIO Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates
Applications
OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics
Block Diagram
Parameters
| Model No | F89FTSM13-W3 | Main Chipset | RTL8189FTV |
| Interface | SDIO | WiFi Standard | IEEE802.11 b/g/n |
| Data Rate | 150Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
| Operating Frequency | 2.4G:2.400～2.4835GHz | Operating Voltage | 3.3V |
| Demension | L12.0 * W12.0 * T1.6mm | RF Chain | 1T1R |
| Operating Temperature | 0°C to 55°C | Storage Temperature | -40°C to 80 °C |

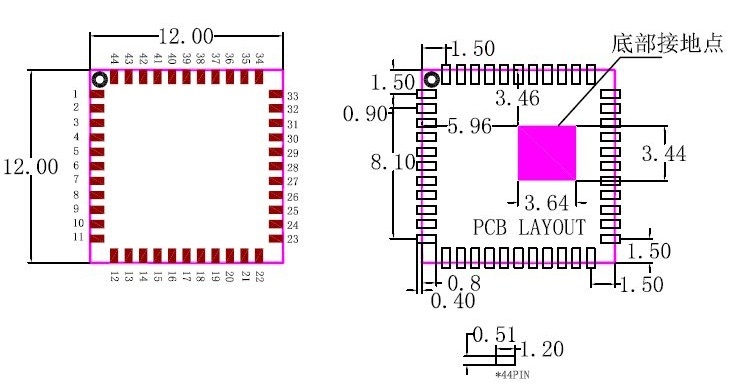

Demensions
Download
Please download the specification from
