F92ESSM13-W1

WiFi Single-band 2X2 11n Module Wireless Module Transceiver Module Internet Radio Module

Product classification:

RF 2.4G Wi-Fi/BT Module

Key words:

F92ESSM13-W1

wireless module

internet radio module wifi

wireless camera module

wireless transmitter module

transceiver module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

Operate at ISM frequency bands (2.4GHz)

SDIO Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

Data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHY rates

Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

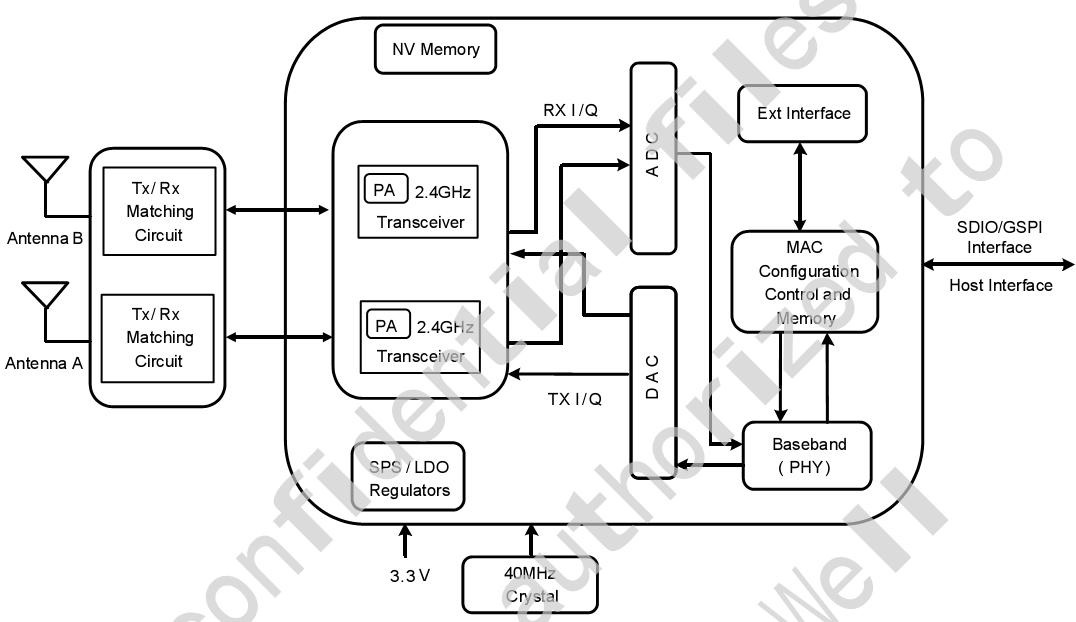

Block Diagram

Parameters

Model No F92ESSM13-W1 Main Chipset RTL8192ES
Interface SDIO WiFi Standard IEEE802.11 b/g/n
Data Rate 300Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Android /Linux/Windows
Operating Frequency 2.400~2.4835GHz Operating Voltage 3.3V
Demension L14.0 * W12.5 * T2.3mm RF Chain 2T2R
Operating Temperature 0°C to 55°C Storage Temperature -40°C to 80 °C

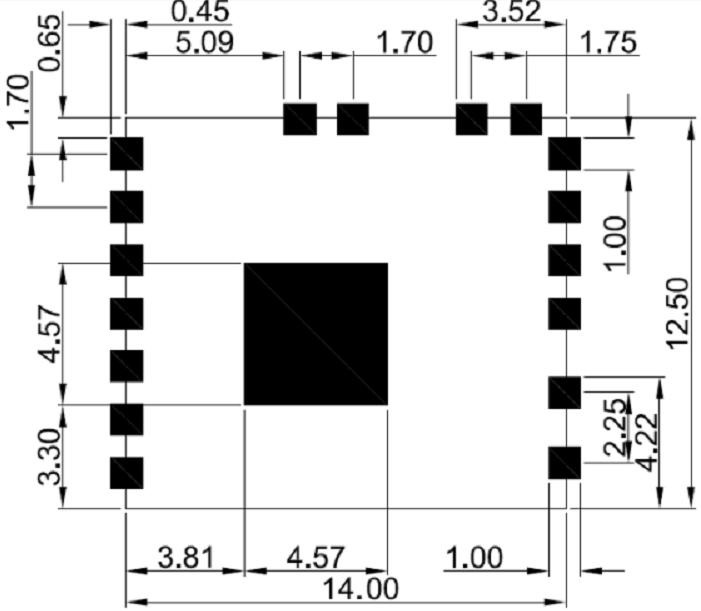

Demensions




Key Words: Wireless Module Transceiver Module Internet Radio Module

Download

Please download the specification from

Download Center
