H158V-S

WiFi Single-band 1X1 11n Module WiFi Module RF Transmitter And Receiver Module SDIO WiFi Module
没有此类产品
Page view:
Product description

Features

Operate at ISM frequency bands (2.4GHz)

PHY Support 802.11b/g/n compatible WLAN

Wi-Fi 1 T 1 R allow maximum rate of 150 Mbps



Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

Block Diagram

Parameters

Model No H158V-S Main Chipset SV6158P
Interface SDIO WiFi Standard IEEE802.11 b/g/n
Data Rate 150Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Linux/Android/Windows
Operating Frequency 2.4G:2.400~2.4835GHz Operating Voltage 3.3V
Dimension L23 * W21 * T2.4mm RF Chain 1T1R
Operating Temperature -10°C to 70°C Storage Temperature -40°C to 85 °C

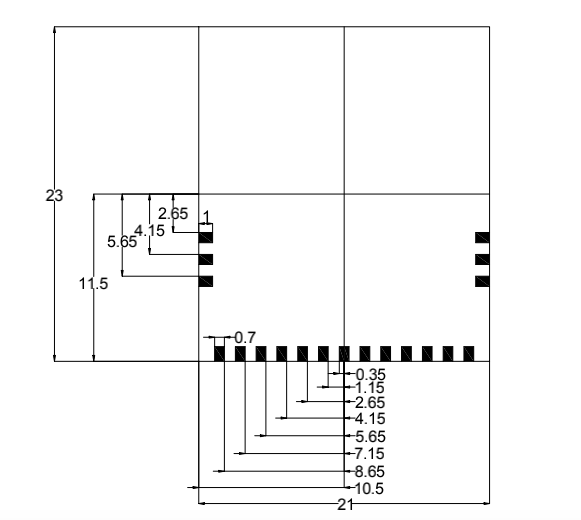

Dimension




Key Words: WiFi Camera Module RF Module USB WiFi Module
Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待

Download

Please download the specification from Download Center
