L287B-SR

Wi-Fi Dual-band 2X2 11ac +Bluetooth 5.0 Module Long Range WiFi Module WiFi Video Module 802.11AC WiFi Module
没有此类产品
Page view:
Product description

Features

CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11 a/b/g/n/ac
Support 802.11ac 1x1, compliant with MU-MIMO STA mode
SDIO 3.0 interface for WLAN, with rate up to 208MHz
802.11ac support maximum rate up to 433Mbps in 80MHz bandwidth
Support HS-UART and PCM host interface for BT
Supports Bluetooth V5.0 features

Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics

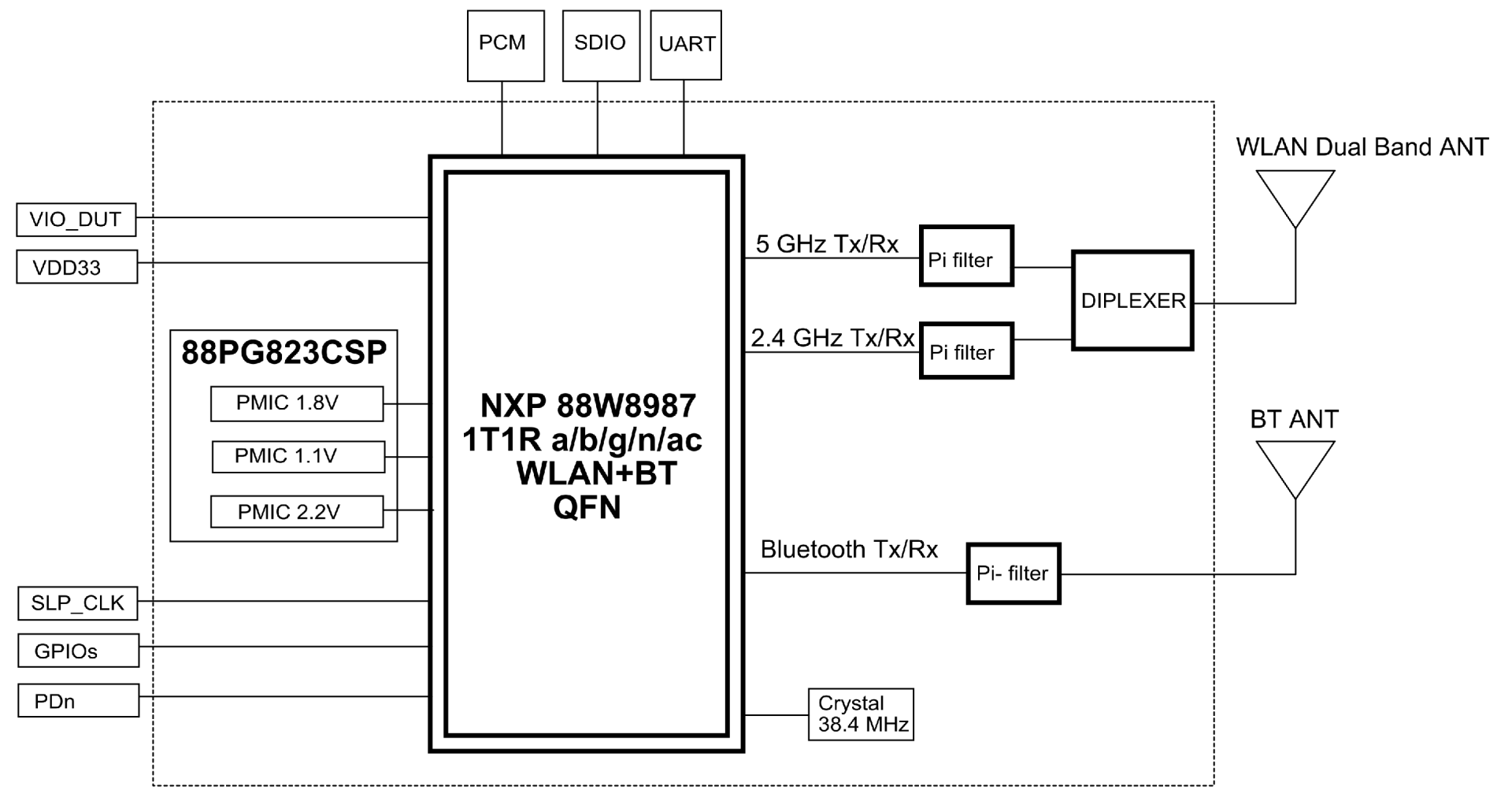

Block Diagram

Parameters

Model No L287B-SR Main Chipset NXP88W8987
Interface SDIO3.0 WiFi Standard IEEE 802.11 a/b/g/n/ac+BLE5.0
Data Rate 433Mbps Certification RoHS,REACH
RF Antenna External Antenna OS Supported Linux/Android/Windows
Operating Frequency 2.4G:2.400GHz~2.497GHz(2.4G ISM Band)
5.8G:4.900GHz~5.845GHz(5.0G ISM Band)
Operating Voltage 3.3V
Demensions L15.0 * W13.0 * T2.15mm RF Chain 1T1R
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 85°C

Demensions




Key Words: Long Range WiFi Module WiFi Video Module 802.11AC WiFi Module
Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待

Download

Please download the specification from Download Center
