RF-BM-ND04

nRF52832 Bluetooth Moule Bluetooth 5.0 Module BLE Bluetooth Module Nordic Bluetooth Module

Product classification:

IoT Wi-Fi/BLE Module

Key words:

nrf52832

RF-BM-ND04

bluetooth5.0module

nordic bluetooth module

ble bluetooth module

undefined
undefined
undefined
  • undefined
  • undefined
  • undefined
consultation

Features

32-Bit ARM Cortex M4F processor
Outpower regulation(-20dBm~+4dBm)
Up to 29 GPIOs
Support BLE5.0

Applications

Smart Light、Instrument、Logistics Tracking、Health Care、Smart Home、Motion Measurement、Automotive Electronics、Toy and other consumer electronics

Block Diagram

Parameters

Model No RF-BM-ND04 Main Chipset nRF52832
Interface Uart/SPI/ADC/PWM Protocol BLE4.0/4.2/5.0
Operating Frequency
2.400~2.4835GHz
RF Antenna PCB Antenna
Demension
L24.8 * W15.0 * T1.8mm
Operating Voltage 3.3V
Operating Temperature -20°C to 70°C Storage Temperature -40°C to 85°C

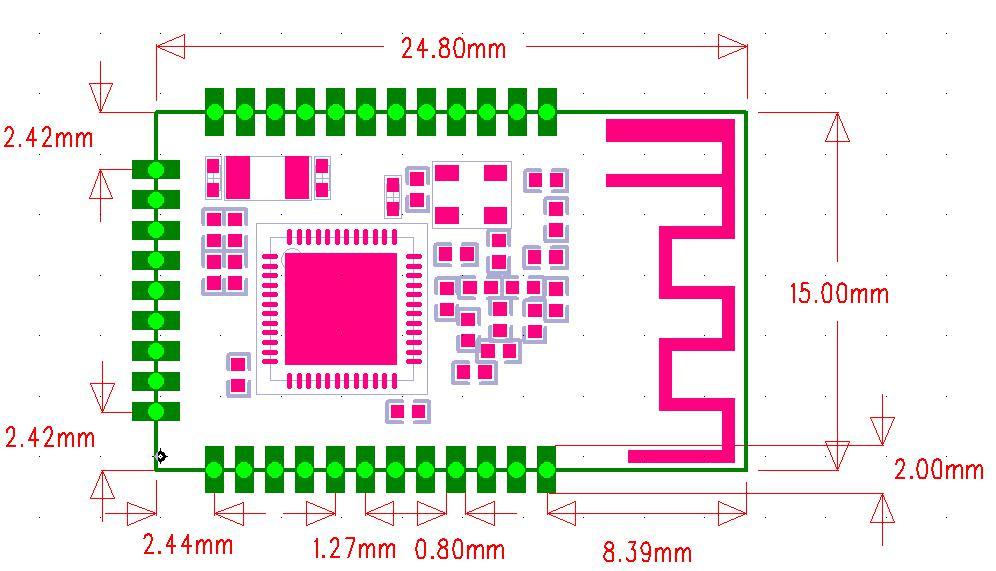

Demensions




Key Words: Bluetooth 5.0 Module BLE Bluetooth Module Nordic Bluetooth Module

Download

Please download the specification from

Download Center
